Our Problem:

We need to create an Enterprise application that is web-based, has an Excel-ish interface and pulls data from an Oracle database.

Technologies Chosen*:

• Silverlight for the UI
• Prism 2 for the modular framework
• Unity for DI
• IdeaBlade DevForce for the Business Object Layer and Async functionality
• MS Entity Framework for the ORM
• DevArt dotConnect for Oracle (EF Drivers)
• Oracle 11 Database

* See here for our reasoning.

Prerequisites:

1. Complete the procedures documented in Step 1
2. Install IdeaBlade’s DevForce for Silverlight tool.
3. Install the Silverlight development environment. This comprises:
   1. The Silverlight 3 Developer Runtime
   2. The Silverlight 3 Tools for VS 2008
   3. The Silverlight 3 SDK

Creating the DevForce model projects:

There will be two DevForce model projects, one will be a C# library project that runs on the server, the other will be a Silverlight library that runs in the Silverlight client. The DevForce framework takes care of wiring these two together with a couple of WCF services that are hosted in the Web application that hosts the DevForce components and the Silverlight app.

To create the projects:

1. Open the Entity Framework model solution created in Step 1 of this walkthrough.
2. Select Tools | DevForce Object Mapper
3. DevForce naturally works with EDMX files (Model | Add Entity Model), but we have an EDML file from the devArt Entity Developer, so we have to use File | Open to get to it.

   Select File | Open, change the Files of type to All Files. Select the Model_Widget.edml file and click Open.
   At this point, DevForce has opened the EF model. Now, we have to tell it how we want the projects to be configured.

4. First, click the New Project button for the Domain Model project.
   The Project Name needs to follow our assembly naming convention, so for this walkthrough, I am using Acme.BirdTrap.Model.Widget (with no suffix).
   I will leave the Project Type and Location at their defaults.
5. Second, click the New Project button for the Silverlight project.
   The Project Name needs to follow our assembly naming convention, so for this walkthrough, I am using Acme.BirdTrap.Model.WidgetSL (with the SL = Silverlight suffix).
   I will leave the Project Type and Location at their defaults.

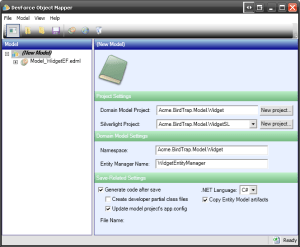

6. Back on the new model tab:
   1. Set the Namespace to: Acme.BirdTrap.Model.Widget
   2. Set the EntityManager name to something more model specific, we use a standard of ModuleEntityManager as the application may need to work with multiple modules’ EntityManagers at the same time.
      I have selected to name the Entity Manager: WidgetEntityManager.



   [Note: See Ward Bell’s essay on the topic of Large Models for more about splitting your model and using multiple Entity Managers.]

7. Select the Model_WidgetEF.edml branch of the Model tree on the left. You will see the settings available for this EF Model.
   1. Change the DataSourceKeyName to something more model specific, we use a standard of ModuleDataSource as each module/model needs a different DataSource definition.
      I have selected to name the Data Source Key: WidgetDataSource
   2. This is also the place where you inject your own base Entity class implementations into the DevForce model. At the very least, you should create a BaseEntity class where you can put common Entity functionality. Click the Injected Base Types button and add Acme.BirdTrap.Utility.Persistence.BaseEntity to the list, setting it as the default. (In a future posting, I will be examining the Injected Base Types in greater depth.)
   3. The name pluralizer is a great feature of DevForce but it is completely irrelevant to us as devArt’s Entity Developer tool has taken care of pluralization for us.

8. Click the Save button on the toolbar. DevForce will now create and initialize the two projects we have defined. When it has finished, close the DevForce Object Mapper.
9. Next, we need to create the BaseEntity class we added to the Injected Base Types earlier.
   1. In the new C# project, Acme.birdTrap.Model.Widget, add a new class named Acme.BirdTrap.Utility.Persistence.BaseEntity that inherits from IdeaBlade.EntityModel.Entity

      using IdeaBlade.EntityModel;

      namespace Acme.BirdTrap.Utility.Persistence
      {
          public class BaseEntity : Entity
          {
          }
      }

   2. In the new Silverlight project, Acme.birdTrap.Model.WidgetSL, add an Existing Item, then navigate to the BaseEntity class you just created in the C# project, drop down the Add button and choose Add as Link.
10. I bet you wish we were done at this point. We are not. DevForce made some assumptions in generating the projects that we need to fix.

    First, and really only a cosmetic issue, DevForce created a Solution Folder for the DomainModel. You can choose to keep this or not. This whole solution is for my DomainModel, so I do not need this new folder. If I incorporate the Model projects into a larger Module level Solution, then I will use a Solution Folder for the Model projects in that solution, but I do not need one here. To remove the folder, I drag the two new projects up out of the folder into the Solution level and then Remove the folder.

11. Second, and by far more serious, DevForce pulled in a bunch of referenced components, some of theirs, some of the .Net Framework’s and some from the Silverlight SDK.
    There are three places where referenced assemblies can safely live:
    1. \WINDOWS\Microsoft.NET\Framework\**.*
    2. \Program Files\Reference Assemblies\**.*
    3. Your solution’s dependencies\**.*
    1. Examining the C# project (Acme.BirdTrap.Model.Widget), we find the IdeaBlade assemblies are referenced from Program Files. We can change that by: first, removing the Ideablade.Core, Ideablade.EntityModel, Ideablade.Validation,assemblies; then adding them back from the dependencies\IdeaBlade DevForce\ folder.
    2. Examining the Silverlight project (Acme.BirdTrap.Model.WidgetSL), we find the IdeaBlade Silverlight assemblies are referenced wrong, which can be corrected as above, only adding back from the dependencies\IdeaBlade DevForce\SilverlightAssemblies folder this time.
       However, we also find that the System.ComponentModel.DataAnnotations assembly is being pulled from \Program Files\Microsoft SDKs\ folder. Remove it and add it back from dependencies\Silverlight\Libraries\Client\.
12. That’s it, right? We’ve created the files and all is well. If you try to Build your solution right now, you will get errors originating from the EF project. But it was fine before we started, and we didn’t change it — or did we?
    In fact, we did. When you point the DevForce Object Mapper at the EF project’s EDML file, DevForce adds a bunch of attributes to some of the elements in that file. In doing so, the DevArt Entity Developer notices the EDML has changed and wipes the generated *.designer.cs file. To restore this, you need to re-open the EDML file and regenerate the generated code. But here’s the rub, if you open the EDML file from within Visual Studio, the devArt Entity Developer will only regenerate the code if you make changes to the model. But we don’t want to make changes to the model.
    Instead, open the EDML file from Windows Explorer. This will open the Entity Developer and reveal a Generate Code button on the toolbar:

    Clicking this button, will regenerate the missing generated code without requiring a model change. You can then exit the Entity Developer.
13. DONE.

Conclusion

In this part of the walk through, we have created the pair of DevForce C# and Silverlight projects that contain our Domain Model.
The solution successfully Builds and the EF unit test we created in Step 1 still passes. Now we need to create a pair of Unit Test projects to ensure that the DevForce framework is configured properly and can successfully CRUD the database through the EF layer. But that will have to wait until the next part of the walk through.

Until then: I’m off to take the dog for a walk! Woof!
